Industrial Control Line AI/AO Analog signal RS485 Protector

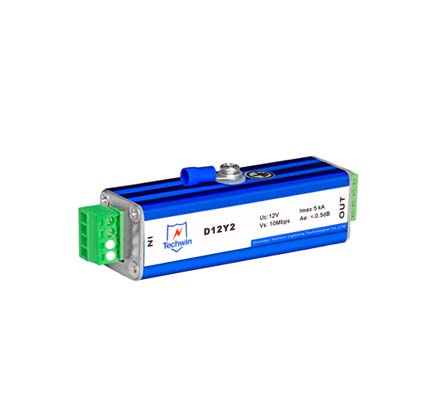

Name: Industrial Control Line AI/AO Analog signal RS485 Protector
Brand: Shenzhen Techwin Lightning Technologies Co., Ltd.

The control signal lightning protection device is designed to protect the control line system to protect the electrical and electronic equipment's signal line from the impact of the lightning electromagnetic pulse, induced over-voltage, transient operation, and resonance overvoltage. The interface form of the product is crimp type, which protects 1-4 lines, and can be used in industrial control fields with different voltage specifications of 6-48V.

Control line protector is designed for control line system to protect electrical and electronic equipment's signal line from the impact of lightning electromagnetic pulse, induced over voltage, transient operation and resonance over voltage. The control line surge arrester can be used in RS232, LAN, MODEM BUS, etc.

GET A QUOTE SPECS DOWNLOAD

Features of Lan Surge Protector for Control Signal System

Low insertion loss, fast response
Low limiting voltage
Precise limiting voltage
Strong discharge current
Crimping

Application of Lan Surge Protector for Control Signal System

V.1, X.27, RS485, RS422.
LAN, CAN, V.24/RS232-C, MODEM BUS.
TOKEN-RING, INDUSTRIAL BUS.
Suitable for the signal's transmission rate protection under the same voltage and same specifications.
Analog signal lightning arrester.
Protect power supply and control line for camera.
Loss prevention system device; Security system; Security integration.
IASP; VSCS; ESA; ACS; exit-inlet control system; exit-inlet control system.

Technical Parameters of Lan Surge Protector for Control Signal System

Model	D05Y2(-A)	D05Y4	D12Y2(-A)	D12Y4	D24Y4	D36Y2(-A)
Lightning projection zone(LPZ)	2
Standards Compliance	IEC61000, EN60950
According to IEC61643	III
According to DIN VDE6075 Part6(Draft 11.89) A1, A2	D
Max continuous operating voltage Uc	5V		12V		24V	36V
Nominal discharge current (8/20µs) In	3KA
Max discharge current Imax (8/21µs) Imax	5KA
Limiting Voltage(10/700µs)	20V		40V		100V	120V
Cut-off Frequency fG	20MHz
Response time tA (L-N/N-PE)	1ns
Protection port	2	4	2	4	4	2
Mounting	Be Installed between protected equipment and signal line
Max connecting line diameter	1.5mm²
Recommend connecting line diameter	1mm²
Transmission standards	10Mbps
Dimension	Regular type: 852525mm			DIN rail type: 901465mm
Interface form	Compression plug
IP code (IEC EN 60529)	IP20
Largest terminal installation torque	0.6-0.8 N.m
Material/color	Aluminum/Blue
Insertion loss	≤0.5dB
Working conditions	Temperature: -40 to 85℃, Relative humidity: ≤95％
