Explore the protection mystery of model EQ100 equipotential connector

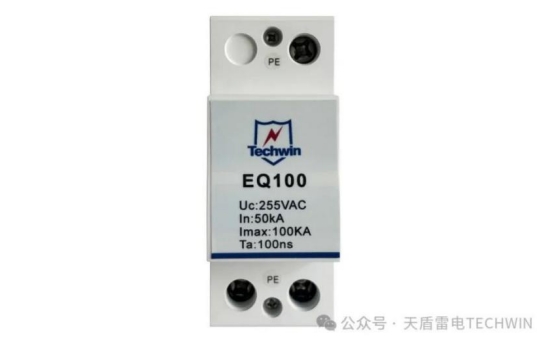

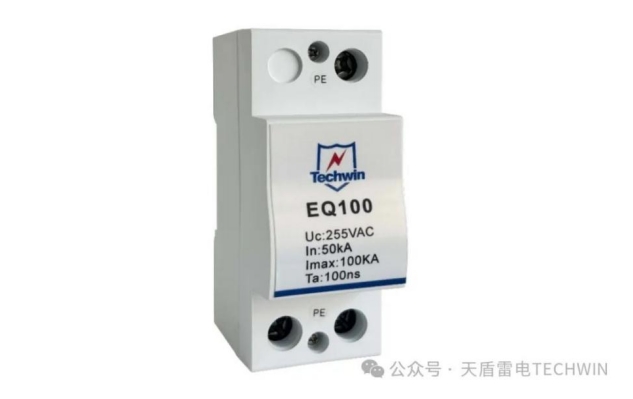

EQ100 equipotential connector is a kind of lightning protection equipment to protect personal and equipment safety. It is mainly used for metal pipelines between different grounding bodies in the grounding system, so as to realize equipotential connection protection. Its working principle is that the equipotential connector is open under normal operation, therefore, the equipotential connector connects the different grounding bodies, without affecting the normal operation of the whole grounding system; the ground potential difference when the potential difference between the ends of the grounding body is greater than the action voltage, the isopotential connector will automatically connect, forcing the potential of different grounding bodies to eliminate the potential difference between the grounding bodies. In short, the EQ100 isopotential connector can be installed in the grounding system, to avoid equipment damage and personal safety risk caused by the high ground potential difference.

Equipotential connector features

01 The voltage protection level is low

The EQ100 equipotential connector can operate at very low voltage difference, which makes the potential difference between the ground body just exceed the EQ100 equipotential connector quickly trigger the protection mechanism, which greatly reduces the risk of the equipment being damaged by the electrical status difference.

02 The response speed is fast

In the case of transient overvoltage such as lightning strike and surge, the voltage changes very fast at —— microseconds, and it is often difficult for ordinary protection equipment to respond in a very short time. The EQ100 equipotential connector has a very fast response speed, which can be used instantly on at the nanosecond level, preventing the device from the influence of potential difference fluctuations.

03 No continuous flow, safe and reliable

The EQ100 equipotential connector adopts a non-continuous flow design and does not generate any additional current after conduction, ensuring the long-term safe operation of the whole system.

04 Easy to install

EQ100 equipotential connector adopts 35MM guide rail installation design, making it suitable for various scenarios. The installation process is simple and does not need complex tools and technical support. Whether it is a new project or an old system upgrade, it can be easily installed.

The EQ100 equipotential connector is not only suitable for equipment that requires equipotential protection, but also for those that cannot be grounded directly grounded. These devices are vulnerable to induced lightning strikes or surge voltage, and the use of EQ100 equipotential connectors can effectively reduce these potential risks.

Isopotential connector application scenarios

EQ100 equipotential connector is widely used in modern buildings, power systems, communication equipment and other fields. In particular, the EQ100 equipotential connectors play a crucial role in the following scenarios:

01 Communication base station

The communication base station is at high height and is vulnerable to lightning and surge. EQ100 equipotential connector can effectively protect the base station equipment and ensure the stability of communication.

02 High-rise buildings

The grounding system of high-rise buildings is complex, and the potential difference between different grounding bodies is large. The use of EQ100 equipotential connector can ensure the safety of electricity consumption inside the building.

03 Medical equipment

Medical equipment has very high voltage requirements, and a little fluctuation may affect the normal operation. The use of EQ100 equipotential connector can effectively avoid the damage caused by the power surge and ensure the long-term stable operation of the equipment.

With the increasing importance of the grounding system in the safety of modern buildings and equipment, it is crucial to choose an efficient and reliable equipotential connector. EQ100 equipotential connector is ideal for protecting equipment from voltage fluctuation damage due to its low voltage protection level, fast response and no continuous flow. It not only provides effective protection for all kinds of equipment, but also guarantees personal safety, truly realizing the perfect combination of technology and safety.

If you need more information about the product or installation method of EQ100, please contact Techwin or visit our official website to open a new experience of intelligent security protection!
