Type 2/ Class C AC Power Lightning SPD Surge Protection Device

Type 2/ Class C AC Power Lightning SPD Surge Protection Device

TUV certificated T2 SPD with high energy MOV technology

Own designed arc-extinguish technology

Special designed Temperature control circuit breaking technology, built-in overheating, overcurrent protection, and short circuit automatic tripping device, to avoid fire transmission

Working status and failure indication, remote signal alarm for remote monitoring (optional)

Pluggable module for easy replacement

Comply with IEC/EN61643-11 standards


Feature of Type 2 AC Power SPD Series Products

  • DIN rail mounting.

  • This AC power surge protector is with plug connectors for quick and easy connection or rewiring.

  • 40kA maximum surge current.

  • Thermal disconnect device.

  • Status indicators visually verify protection level.

  • Surge protection device with N-PE residual current spark gap as 3+1 circuit.

  • Remote alarm function.

  • High quality products with TUV, CE, IEC61643-11 certificates (40KA)


Application of Type 2 Surge Protector Series Products

Type 2 Class C Surge Protective Device for AC Power System.

Type 2 AC power supply system AC module is mainly applicable to the power distribution system for class C/type 2 protection. Type 2 surge protection device can protect electrical equipment from the impact of lightning electromagnetic pulse, induced over-voltage, transit operation, and resonance (less than 100 μs) overvoltage. In addition to the class C spd of 20KA and 25KA, we also provide 40 KA type 2 surge arrester.


  1. Power distribution box(cabinet)

  2. AC cabinet, cabinet air conditioner

  3. PV inverter, Solar inverter, inverter charger, inverter cabinet

  4. Switching mode power supply (SMPS Box, SMPS cabinet), high-frequency switching mode power supply, UPS system

  5. Datacenter, IDC power system, Column head cabinet

  6. Charging station/charging point

  7. Sensitive electronic equipment

  8. Pulse width modulation(PWM box)

  9. Automatic control panels, motor control panels

  10. IT, TT, TN-C, TN-S, TN-C-S, and other power supply system


Technical Parameters of Type 2 AC Power SPD

ModelM40B1M40B2M40B1+NM40B4M40B3+N
Lighning proection zone(LPZ)1-2
Standards Compliance IEC61643-11,  EN60950
ClassificationClass II /Type 2
Frequency of the supply main50/60Hz
Nominal working voltage Un220V220/380V

Max continuous operating

voltage Uc

385V

Nominal discharge current

 (8/20µs)  In

20KA
Max discharge current Imax (8/20µs) Imax40KA

Short-circuit current Rating Isccr

25KA

Temporary overvoltage

(TOV)  Utov

LV(tT=5s): 442 V (L-PE); 337 V (L-N)
LV(tT=120min): 337 V (L-PE); 442 V ( L-N)
HV(tT=200ms): 1455 V (L-PE); 1200 V (N-PE)
Protection level    8/20µs  Up≤1500V
Response time  tA25ns
Leakage current at voltage Uc≤1mA
Protection modeL-PEL/N-PEL-N, N-PEL1/L2/L3,N-PEL1/L2/L3-N,N-PE
Dimension90 (H)×18(W)×65(L)mm90 (H)×36(W)×65(L)mm90 (H)×72(W)×65(L)mm
MountingDIN rail Mounting 35mm
Cross section of Connection wireL/N wire ≥10mm2, PE wire≥ 16mm2
IP codeIP20
Working conditionsTemperature: -40 to 80℃, Relative humidity: ≤95%

Similar models reference
ModelM60B1M60B2M60B1+NM60B4M60B3+N
Lighning proection zone(LPZ)1-2
Standards Compliance IEC61643-11,  EN60950
ClassificationClass II /Type 2
Nominal working voltage Un220V220/380V
Max continuous operating voltage Uc385V
Nominal discharge current  (8/20µs)   In20KA
Max discharge current Imax (8/20µs)   Imax60KA
Temporary overvoltage (TOV)    UtovLV(tT=5s): 442 V (L-PE); 337 V (L-N)
LV(tT=120min): 337 V (L-PE); 442 V ( L-N)
HV(tT=200ms): 1455 V (L-PE); 1200 V (N-PE)
Protection level    8/20µs  Up1800V
Response time tA 25ns
Protection modeL-PEL/N-PEL-N, N-PEL1/L2/L3,N-PEL1/L2/L3-N,N-PE
Dimension90 (H)×18(W)×65(L)mm90 (H)×36(W)×65(L)mm90 (H)×72(W)×65(L)mm
MountingDIN rail Mounting 35mm
IP codeIP20
Working conditionsTemperature: -40 to 80℃, Relative humidity: ≤95%
ModelM80B1M80B2M80B1+NM80B4M80B3+N
Lighning proection zone(LPZ)1-2
Standards Compliance IEC61643-11,  EN60950
ClassificationClass II /Type 2
Nominal working voltage Un220V220/380V
Max continuous operating voltage Uc385V
Nominal discharge current  (8/20µs)   In40KA
Max discharge current Imax (8/20µs)   Imax80KA
Temporary overvoltage (TOV)    UtovLV(tT=5s): 442 V (L-PE); 337 V (L-N)
LV(tT=120min): 337 V (L-PE); 442 V ( L-N)
HV(tT=200ms): 1455 V (L-PE); 1200 V (N-PE)
Protection level    8/20µs  Up2000V
Response time tA 25ns
Protection modeL-PEL/N-PEL-N, N-PEL1/L2/L3,N-PEL1/L2/L3-N,N-PE
Dimension90 (H)×18(W)×65(L)mm90 (H)×36(W)×65(L)mm90 (H)×72(W)×65(L)mm
MountingDIN rail Mounting 35mm
IP codeIP20
Working conditionsTemperature: -40 to 80℃, Relative humidity: ≤95%
ModelM20B1M20B2M20B1+NM20B4M20B3+N
Lighning proection zone(LPZ)1-2
Standards Compliance IEC61643-11,  EN60950
ClassificationClass II /Type 2
Nominal working voltage Un220V220/380V
Max continuous operating voltage Uc385V
Nominal discharge current  (8/20µs)   In10KA
Max discharge current Imax (8/20µs)   Imax20KA
Temporary overvoltage (TOV)    UtovLV(tT=5s): 442 V (L-PE); 337 V (L-N)
LV(tT=120min): 337 V (L-PE); 442 V ( L-N)
HV(tT=200ms): 1455 V (L-PE); 1200 V (N-PE)
Protection level    8/20µs  Up1200V
Response time tA 25ns
Protection modeL-PEL/N-PEL-N, N-PEL1/L2/L3,N-PEL1/L2/L3-N,N-PE
Dimension90 (H)×18(W)×65(L)mm90 (H)×36(W)×65(L)mm90 (H)×72(W)×65(L)mm
MountingDIN rail Mounting 35mm
IP codeIP20
Working conditionsTemperature: -40 to 80℃, Relative humidity: ≤95%



Wiring Diagram Of Type 2 Surge Protection Device Series Products




                     B1+N (L-N, N-PE)                                                              B3+N (L1/L2/L3-N, N-PE)





                          B2 (L/N-PE)                                                                          B4 (L1/L2/L3-N, N-PE)


Details of Type 2 Surge Arrester Series Products

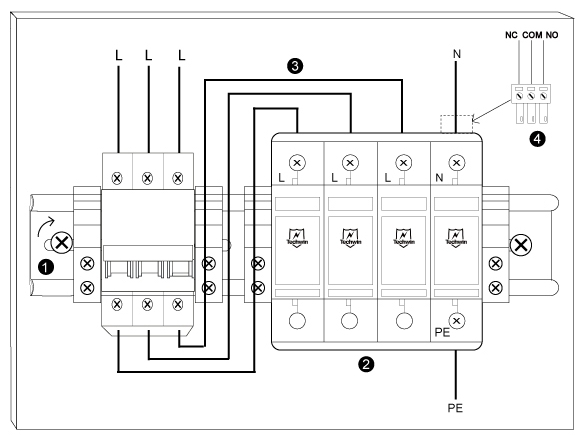

Installation Diagram of M20B Type 2 AC Power SPD

Installation Diagram of M20B Type 2 AC Power SPD
